Deliver turn-key corporate image identification solutions to every corner of the world.

The products are exported to domestic and international markets, especially popular in Europe, China, Southeast Asia and other regions.

All
The MSIY dual-motor controller provides sequential control for two motors from a single unit, with automatic motor switching capability.Supports remote interlock control of the controller，Equipped with hardwired & communication。
MSIY Dual-Motor Controller
MSIY Dual-Motor Controller
The MSIY dual-motor controller provides sequential control for two motors from a single unit, with automatic motor switching capability.Supports remote interlock control of the controller，Equipped with hardwired & communication。
Learn more
MSIY Controller One-to-Four，Single control unit drives four motors alternately， Exclusive operation mode: Only one motor active per cycle。Supports remote interlock control of the controller，Equipped with hardwired & communication。
MSIY Controller One-to-Four
MSIY Controller One-to-Four
MSIY Controller One-to-Four，Single control unit drives four motors alternately， Exclusive operation mode: Only one motor active per cycle。Supports remote interlock control of the controller，Equipped with hardwired & communication。
Learn more
With a power of 600W and torque up to 1.5N·m, this spindle operates at 6000 RPM and can accommodate tool shanks up to 13mm in diameter. It offers both air cooling and water cooling options, and features dual radial and axial floating capabilities, making it particularly suitable for grinding, polishing, and deburring hard materials such as steel, die-cast aluminum, and cast iron.
MSIY-62 Floating
MSIY-62 Floating
With a power of 600W and torque up to 1.5N·m, this spindle operates at 6000 RPM and can accommodate tool shanks up to 13mm in diameter. It offers both air cooling and water cooling options, and features dual radial and axial floating capabilities, making it particularly suitable for grinding, polishing, and deburring hard materials such as steel, die-cast aluminum, and cast iron.
Learn more
MSIY-30 floating spindle, with a power of 350W and a speed of up to 60000 revolutions per minute, can achieve bi-directional radial and axial floating. It is commonly used for polishing and deburring automotive wheels, die-casting aluminum parts, plastic parts, silicone and other materials. A small industrial robot weighing 7 kilograms can be installed.
MSIY-30Floating
MSIY-30Floating
MSIY-30 floating spindle, with a power of 350W and a speed of up to 60000 revolutions per minute, can achieve bi-directional radial and axial floating. It is commonly used for polishing and deburring automotive wheels, die-casting aluminum parts, plastic parts, silicone and other materials. A small industrial robot weighing 7 kilograms can be installed.
Learn more
Msiy pneumatic floating spindle refers to a floating device composed of a pneumatic spindle and an MSIY-20 floating tool holder. The speed can be selected from 30000 rpm, 8000 rpm, and 2000 rpm, and is commonly used for removing burrs with small margins in zinc alloys, magnesium alloys, sand cores, die cast aluminum, and other materials.
MSIY-20 Floating Spindle
MSIY-20 Floating Spindle
Msiy pneumatic floating spindle refers to a floating device composed of a pneumatic spindle and an MSIY-20 floating tool holder. The speed can be selected from 30000 rpm, 8000 rpm, and 2000 rpm, and is commonly used for removing burrs with small margins in zinc alloys, magnesium alloys, sand cores, die cast aluminum, and other materials.
Learn more
Msiy-30AQC automatic tool changing floating spindle, composed of automatic tool changing spindle NR3060-AQC and MSIY floating tool holder, with an output power of 350W and adjustable speed of 1000-60000, with radial and axial double floating, commonly used for deburring automotive wheel hubs or die-casting parts.
MSIY-30AQC Floating
MSIY-30AQC Floating
Msiy-30AQC automatic tool changing floating spindle, composed of automatic tool changing spindle NR3060-AQC and MSIY floating tool holder, with an output power of 350W and adjustable speed of 1000-60000, with radial and axial double floating, commonly used for deburring automotive wheel hubs or die-casting parts.
Learn more

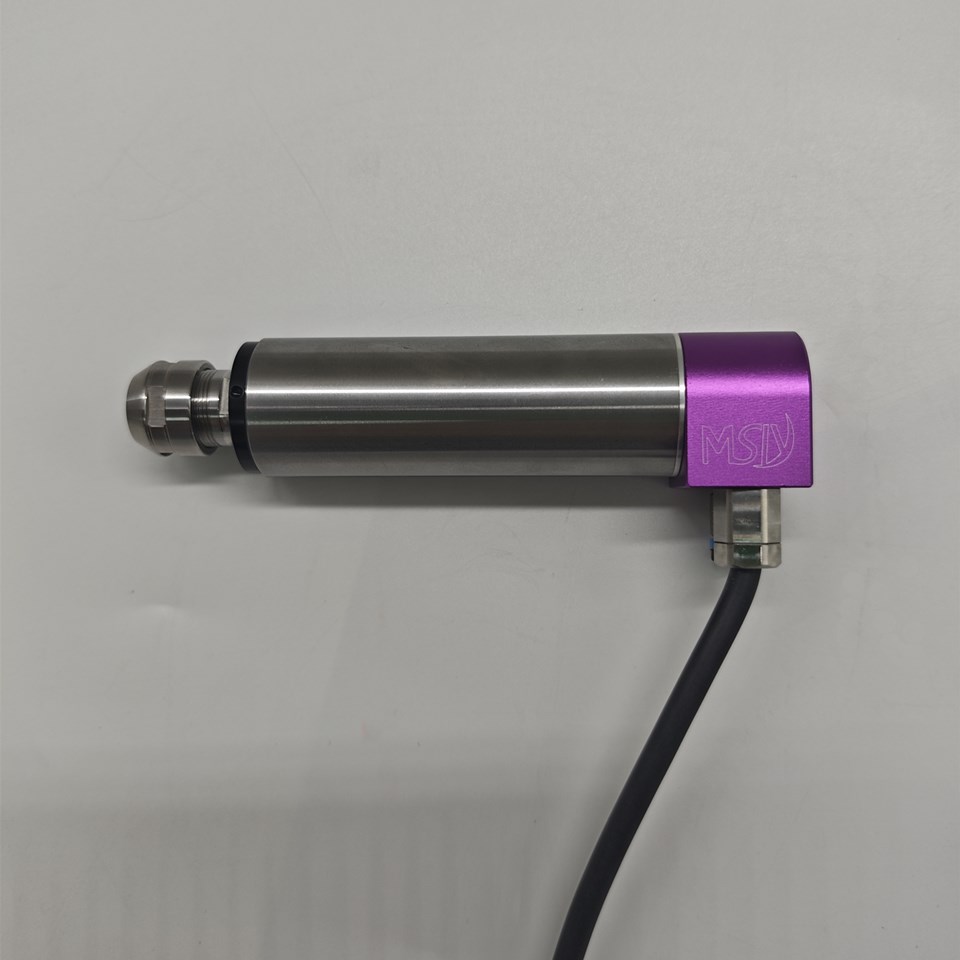

MSIY-2510 brushless electric spindle, with an outer diameter of 25mm, can be directly installed on 25mm outer diameter cutting machines, walking machines or non-standard equipment for use. The speed can be adjusted to 10000 revolutions per minute and can be used for precision machining such as drilling, milling, cutting, etc.
MSIY-2510
MSIY-2510
MSIY-2510 brushless electric spindle, with an outer diameter of 25mm, can be directly installed on 25mm outer diameter cutting machines, walking machines or non-standard equipment for use. The speed can be adjusted to 10000 revolutions per minute and can be used for precision machining such as drilling, milling, cutting, etc.
Learn more

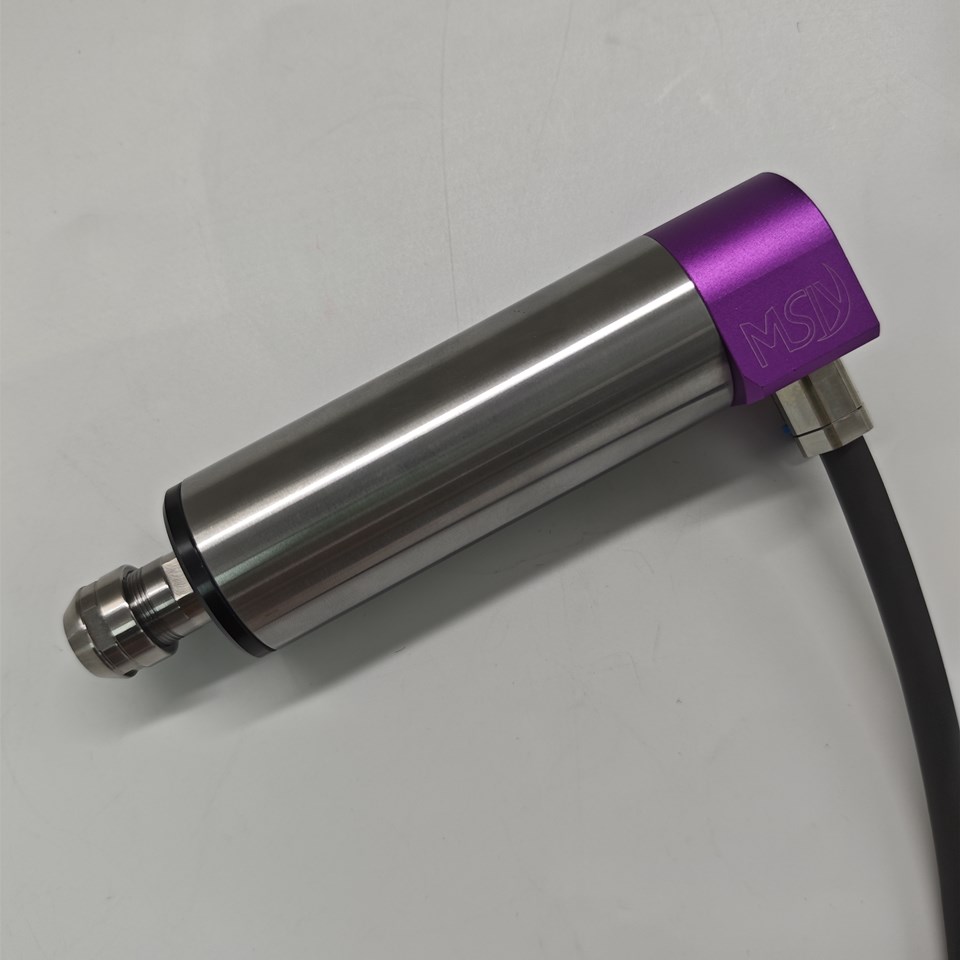

MSIY-3316 brushless electric spindle, with an outer diameter of 33mm, adjustable speed of 1000-16000rpm, small size, can be installed on small CNC lathes such as walking machines, cutting machines, or various specialized machines. Commonly used for precision machining such as drilling, milling, cutting, chamfering, etc.
MSIY-3316
MSIY-3316
MSIY-3316 brushless electric spindle, with an outer diameter of 33mm, adjustable speed of 1000-16000rpm, small size, can be installed on small CNC lathes such as walking machines, cutting machines, or various specialized machines. Commonly used for precision machining such as drilling, milling, cutting, chamfering, etc.
Learn more

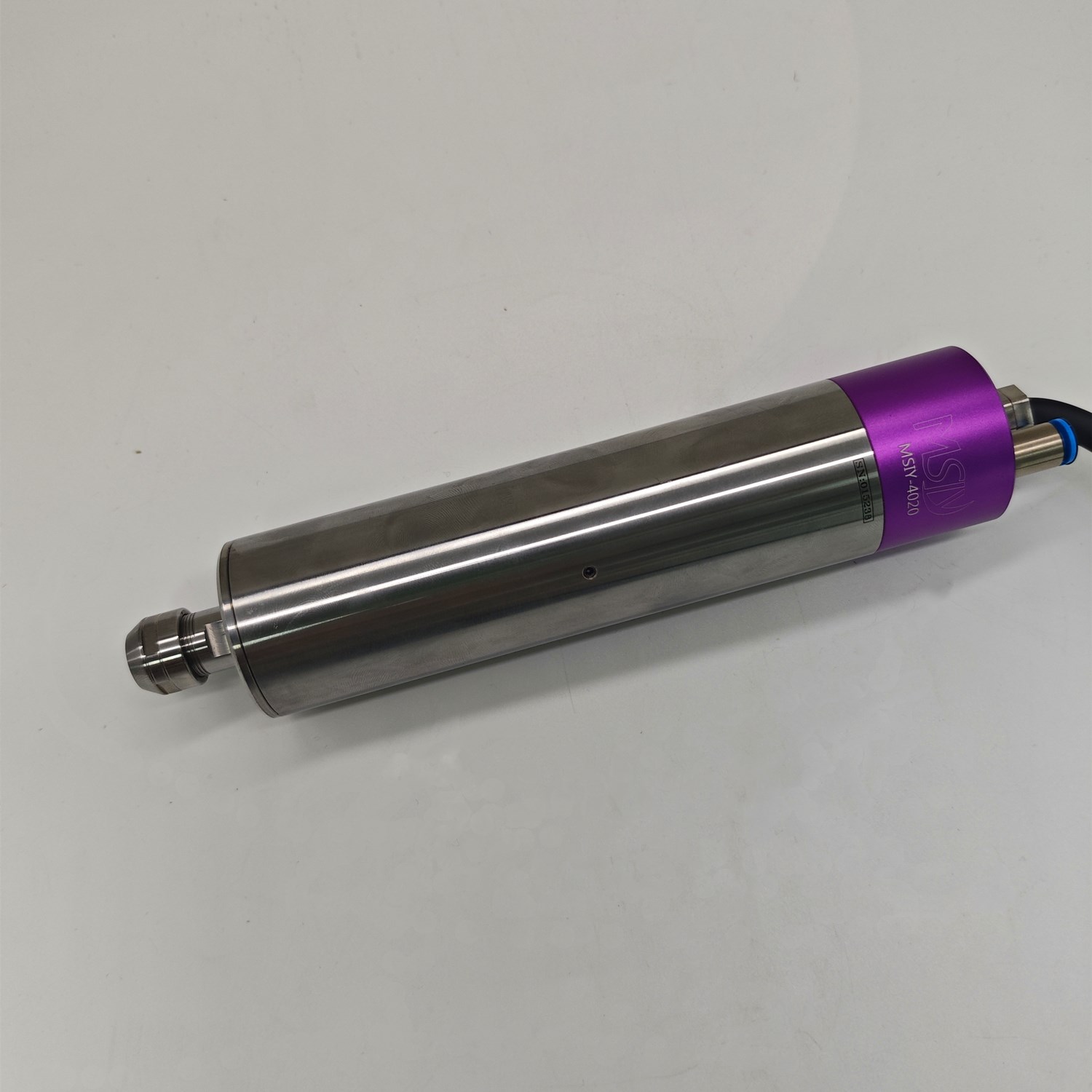

MSIY-4020 electric spindle belongs to brushless electric spindle, with an outer diameter of 40mm and an adjustable speed of 1000-20000rpm. It can be installed on CNC machine tools, robotic arms or various specialized machines for drilling, milling, chamfering, cutting and other processing.
MSIY-4020
MSIY-4020
MSIY-4020 electric spindle belongs to brushless electric spindle, with an outer diameter of 40mm and an adjustable speed of 1000-20000rpm. It can be installed on CNC machine tools, robotic arms or various specialized machines for drilling, milling, chamfering, cutting and other processing.
Learn more

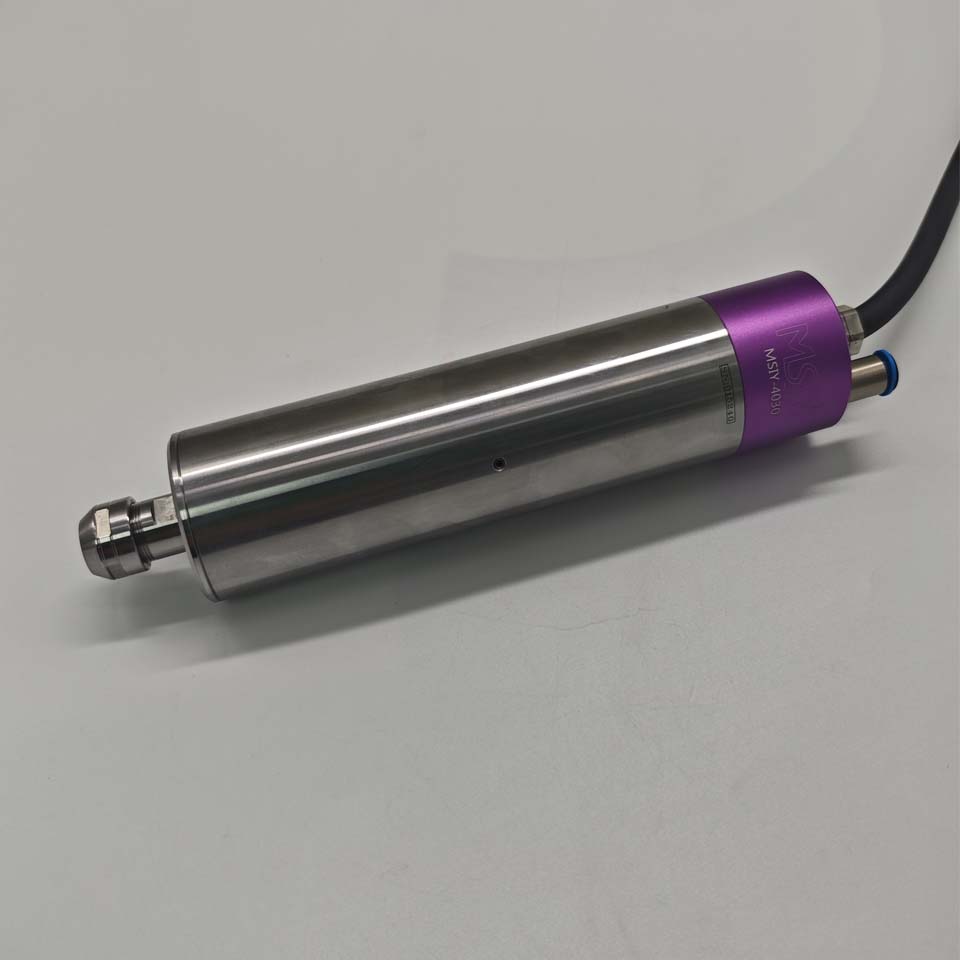

MSIY-4030 electric spindle is a brushless air-cooled electric spindle with an outer diameter of 40mm, an adjustable speed of 1000-30000rpm, an output power of 600W, a torque of 30cN. m, and the ability to hold tool diameters of 1.0-7.0mm. Drilling, milling, cutting, chamfering, and carving are all available.
MSIY-4030
MSIY-4030
MSIY-4030 electric spindle is a brushless air-cooled electric spindle with an outer diameter of 40mm, an adjustable speed of 1000-30000rpm, an output power of 600W, a torque of 30cN. m, and the ability to hold tool diameters of 1.0-7.0mm. Drilling, milling, cutting, chamfering, and carving are all available.
Learn more

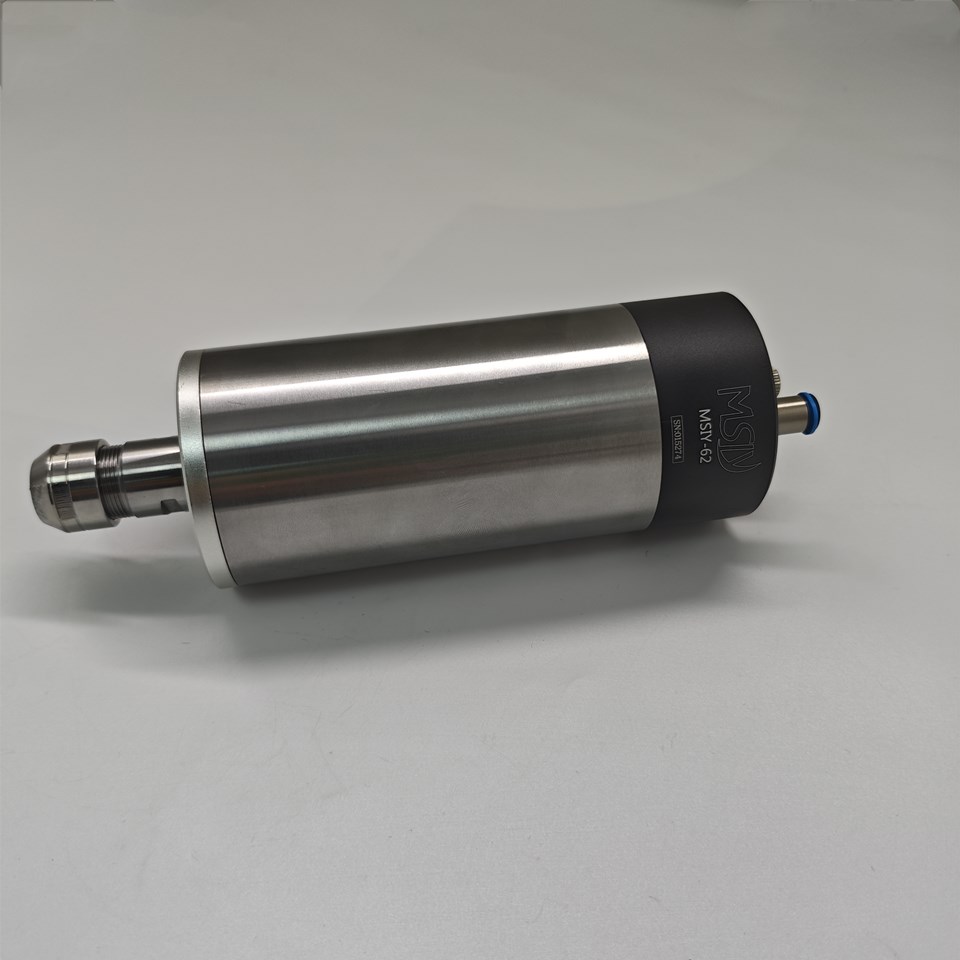

MSIY-6208 electric spindle is a high torque electric spindle with an outer diameter of 62mm. It has a power of 500W and a torque of 1N. m, and can hold tools with a diameter of 13mm. It can be used for cutting, drilling, milling, chamfering, and other processing.
MSIY-6208
MSIY-6208
MSIY-6208 electric spindle is a high torque electric spindle with an outer diameter of 62mm. It has a power of 500W and a torque of 1N. m, and can hold tools with a diameter of 13mm. It can be used for cutting, drilling, milling, chamfering, and other processing.
Learn more
