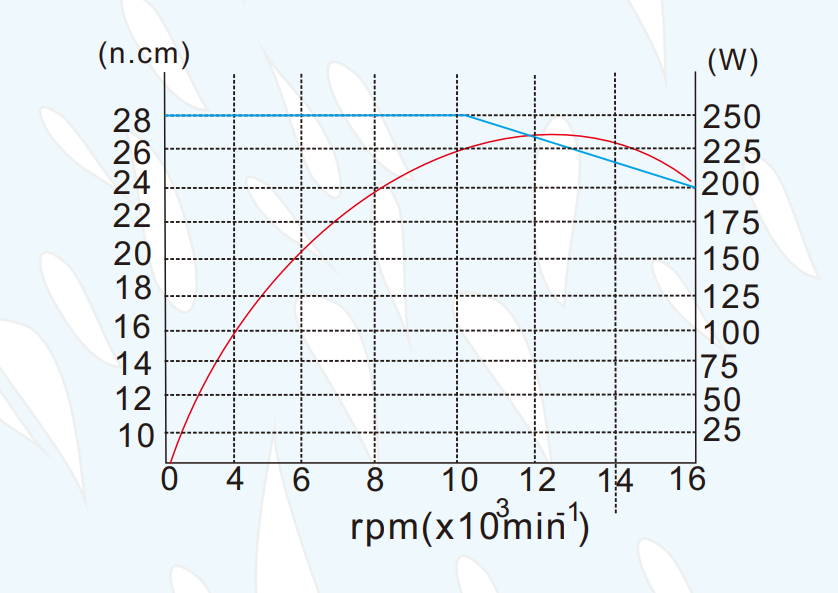

Torque output characteristics

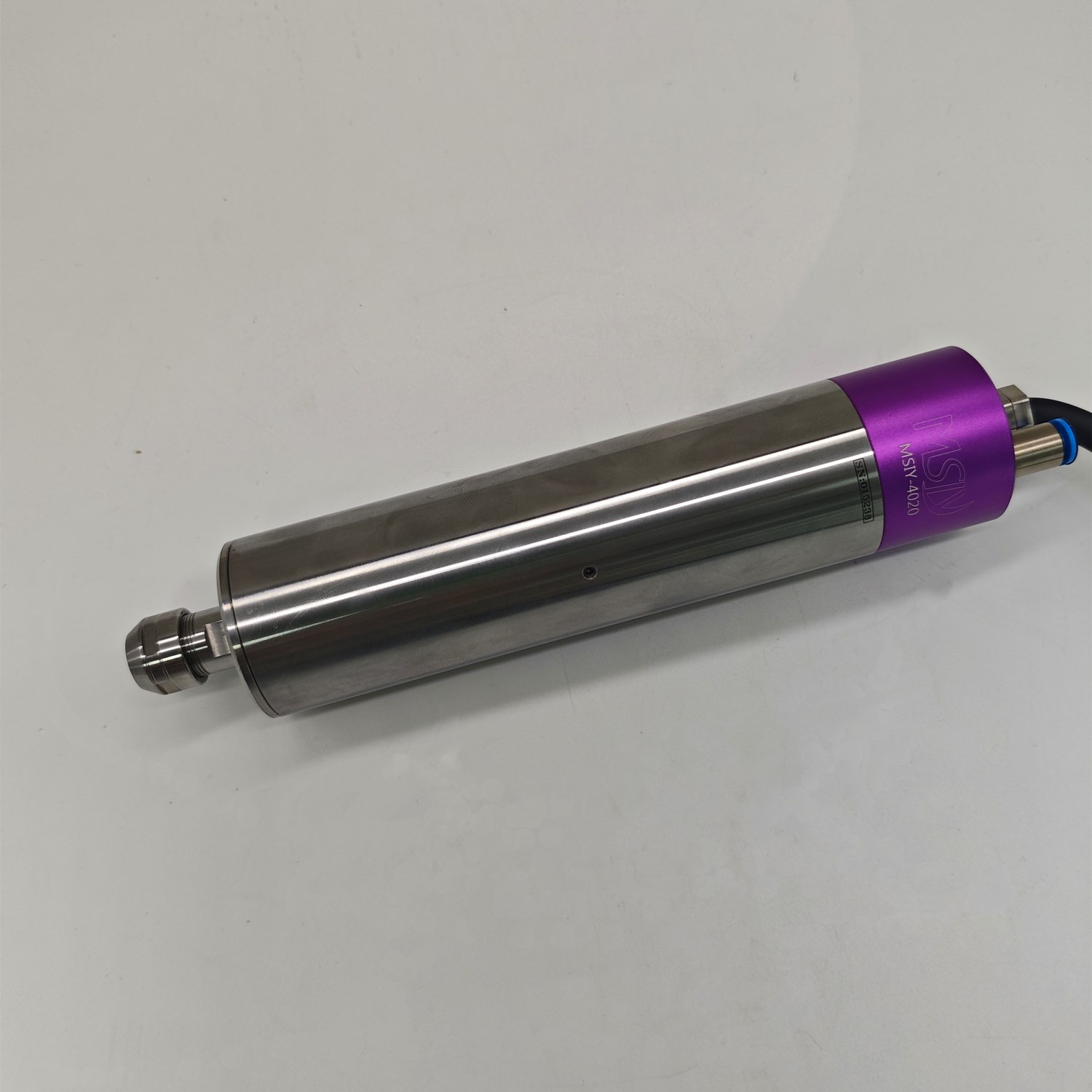

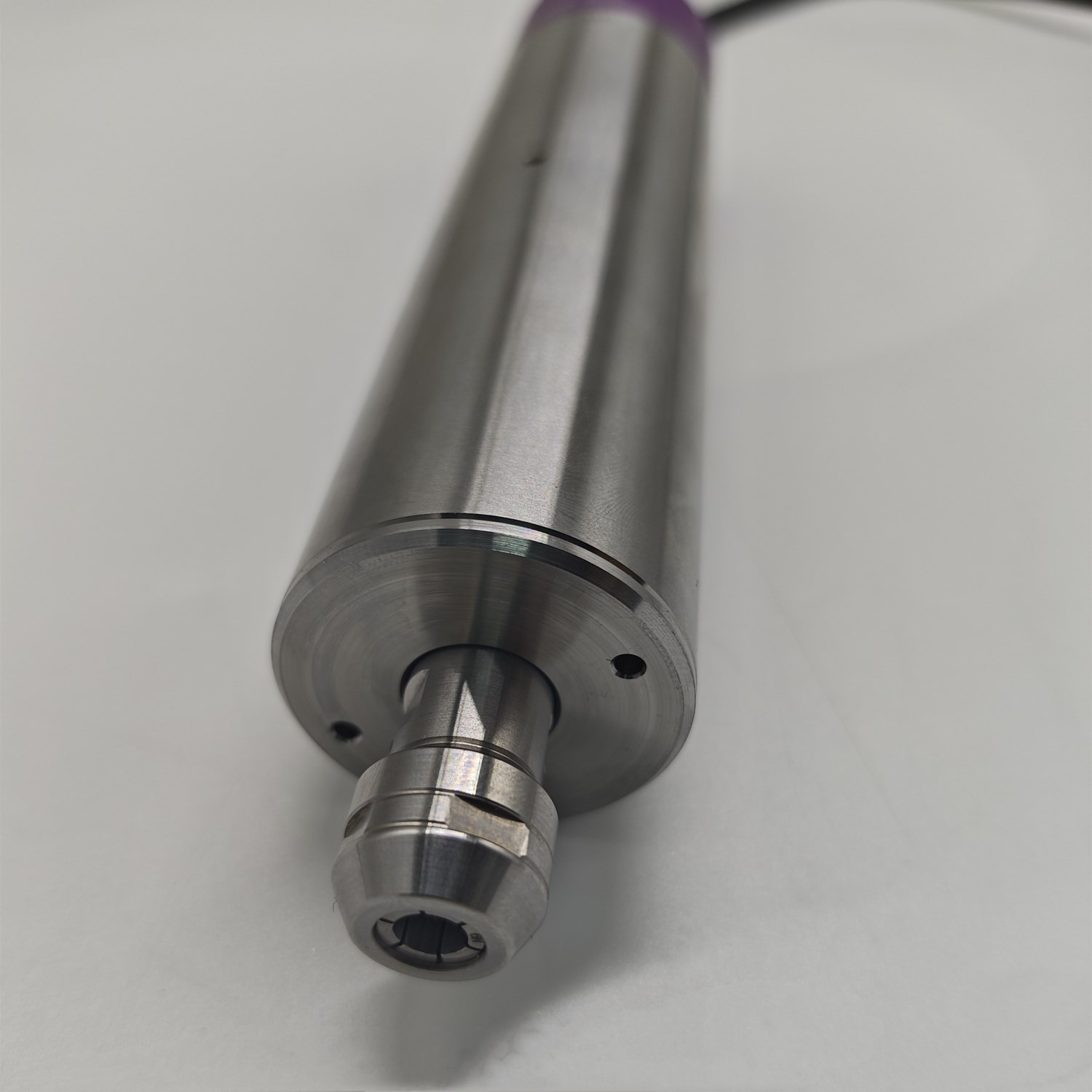

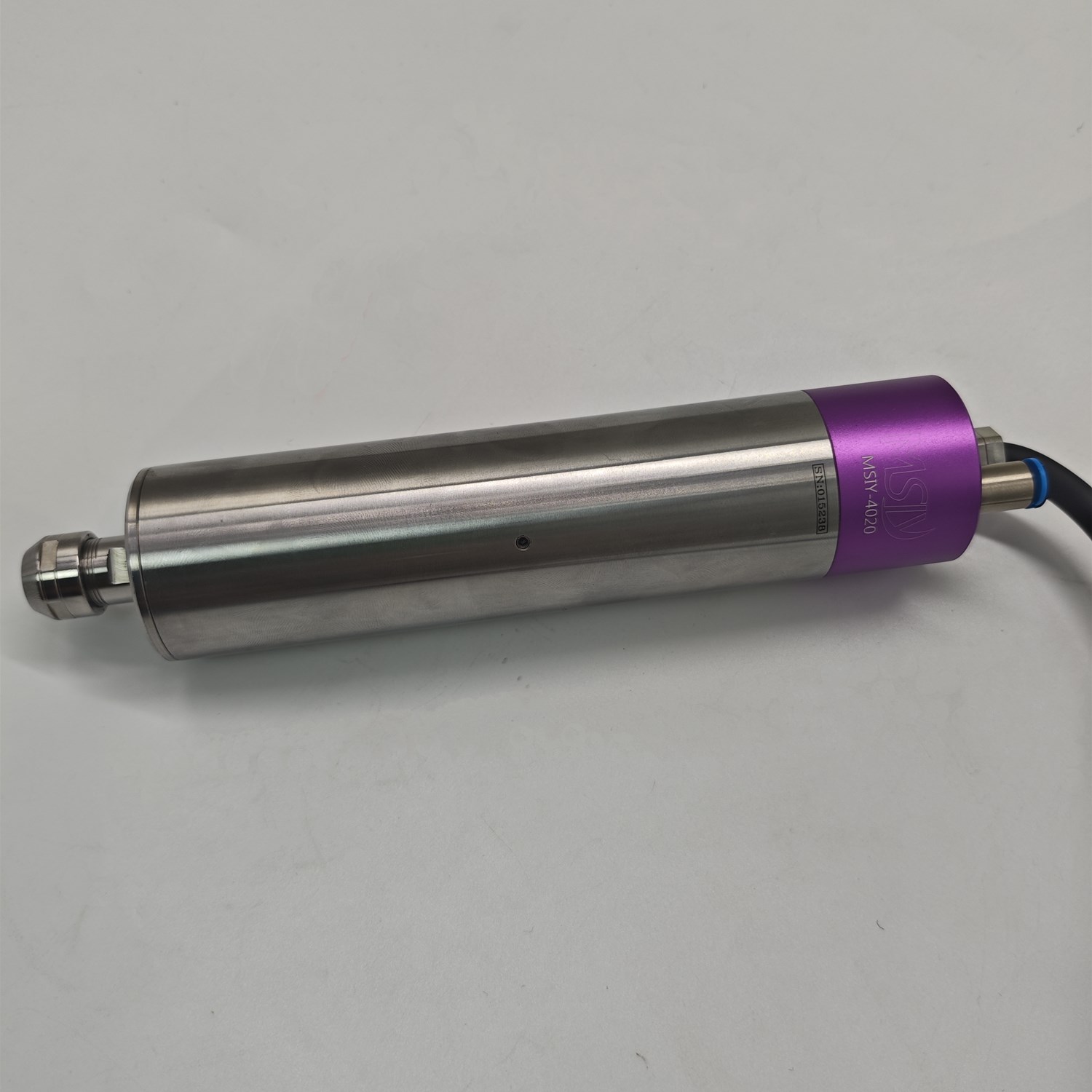

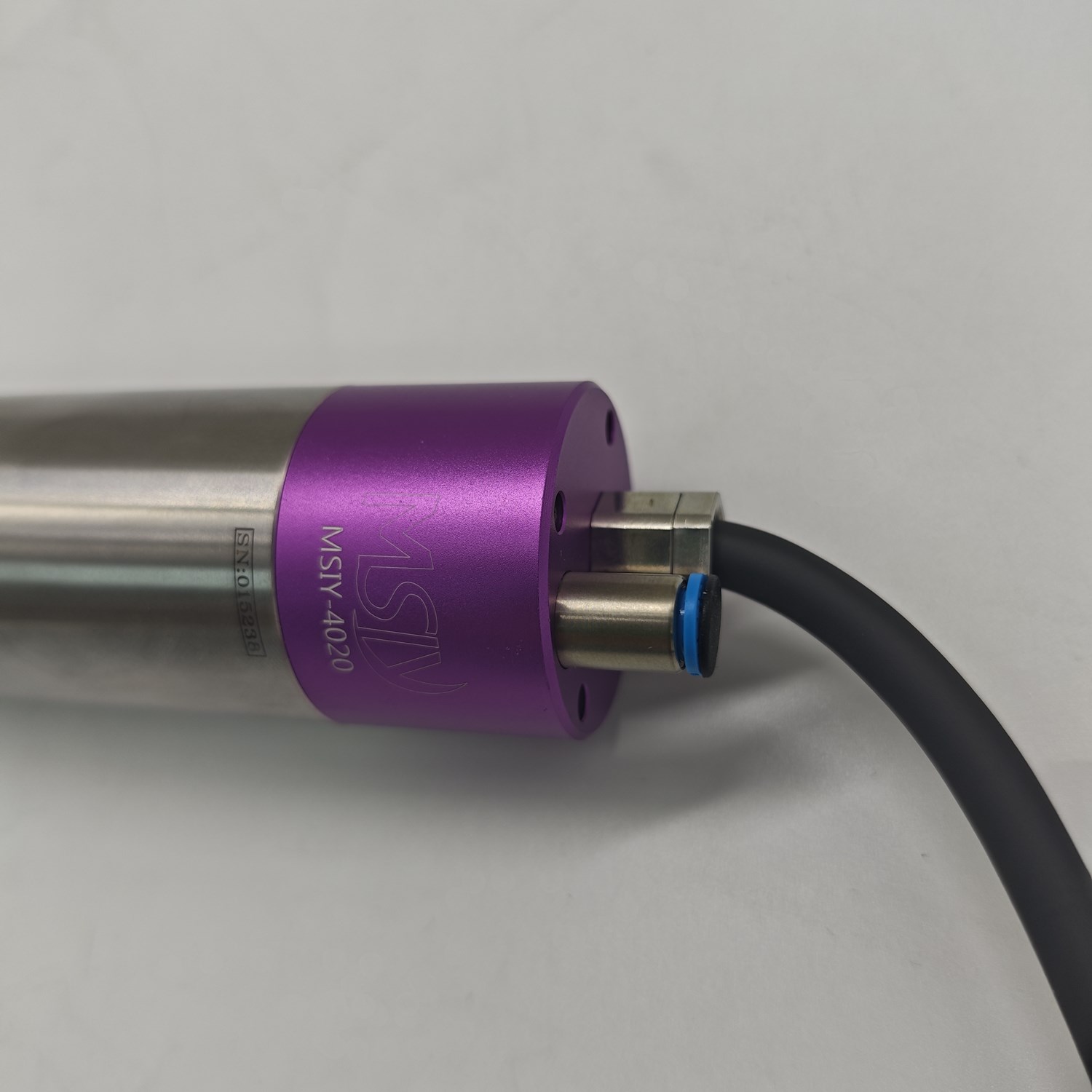

Product Details Display

Application area

1. Automotive parts: deburring of motor housing for new energy vehicle parts

2. 5G communication: Micro hole drilling (aperture 0.2mm, position accuracy ± 3 μ m)

3. Medical equipment: Orthopedic screw thread grinding (Ra0.1 μ m mirror effect)

4. Semiconductor: wafer cutting

Product parameters

Product diameter: 40mm

Speed: 1000-20000rpm

Cooling method: air cooling

Bounce accuracy: 3 μ m

Collet type: ER11

Output power: 600W

Weight: 1.1kg

Torque: 60N. cm

Protection level: IP64

Clamping range: 1.0-7.0mm

Inverter: MSIY-B80
