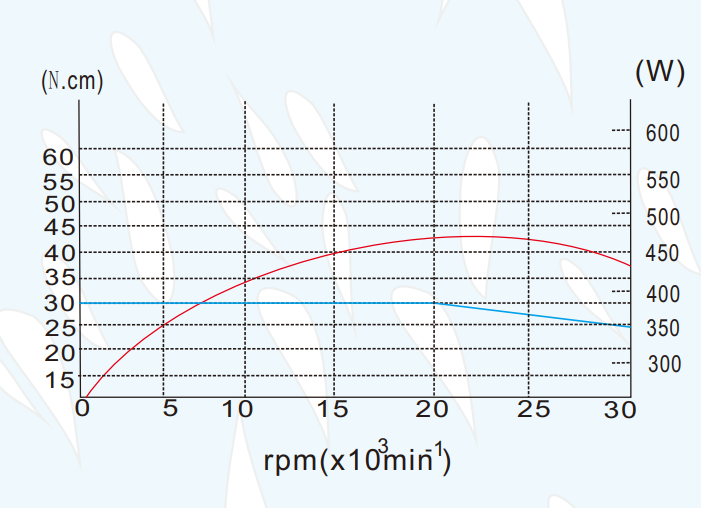

Torque output characteristics

Product Details Display

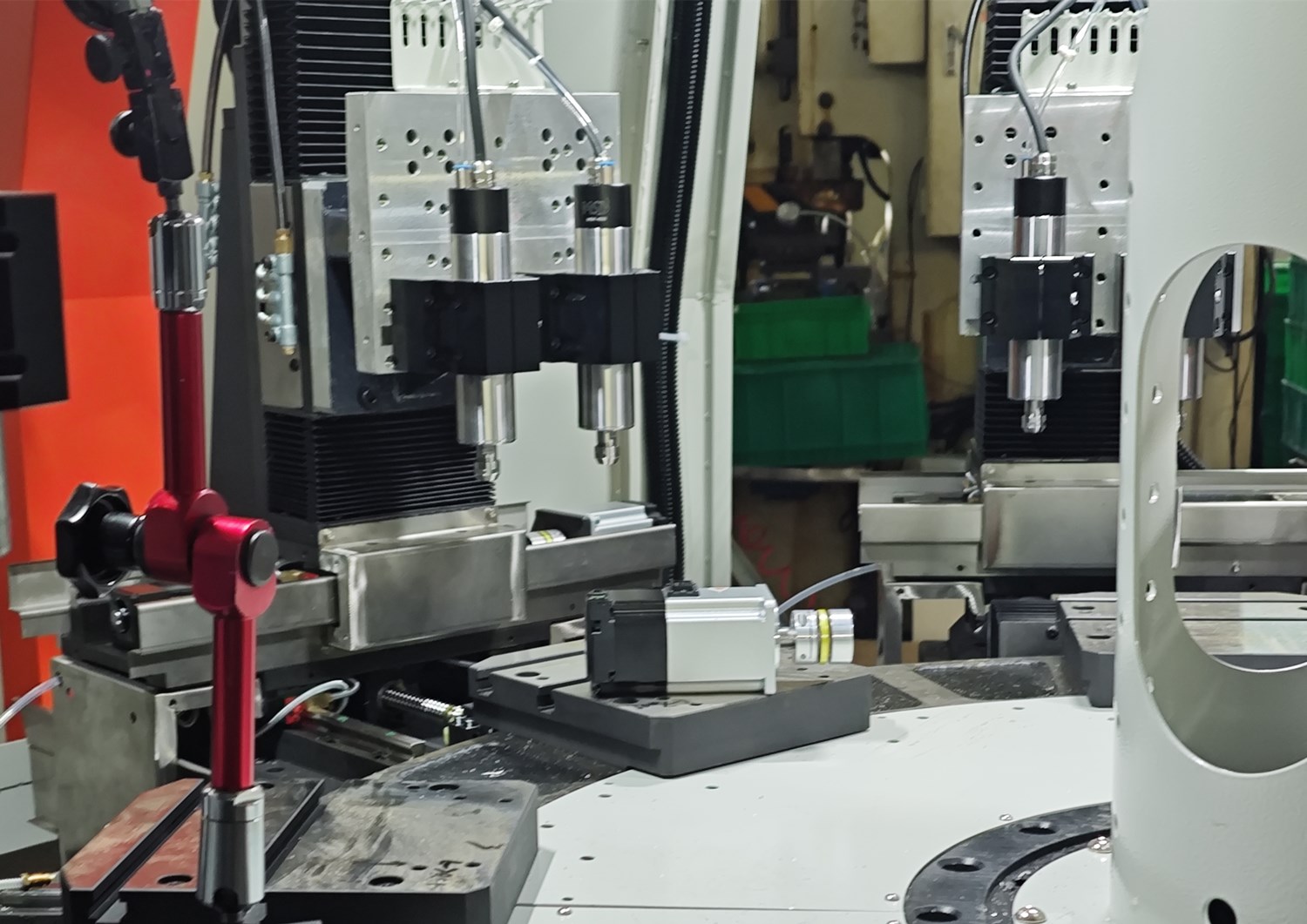

Product Application

The MSIY-4030 electric spindle has a high rotational speed, making it suitable for cutting PCB circuit boards. Or precision milling of golf clubs. It can also be used for drilling, polishing, and other processing.

Product parameters

Diameter: 40mm

Speed: 3000-30000rpm

Accuracy: 5 μ m

Output power: 600W

Torque: 30N. cm

Weight: 1.1kg

Chuck type: ER11

Clamping range: 1.0-7.0mm

Protection level: IP64

Cooling method: water cooling
