Product parameters

Product diameter: 62mm

Speed: 1000-8000rpm

Accuracy: 5 μ m

Power: 500W

Weight: 2.3KG

Torque: 1N. m

Collet type: ER20

Protection level: IP64

Clamping range: 1-13mm

Spindle length: 113mm

Cooling method: water cooling or air cooling

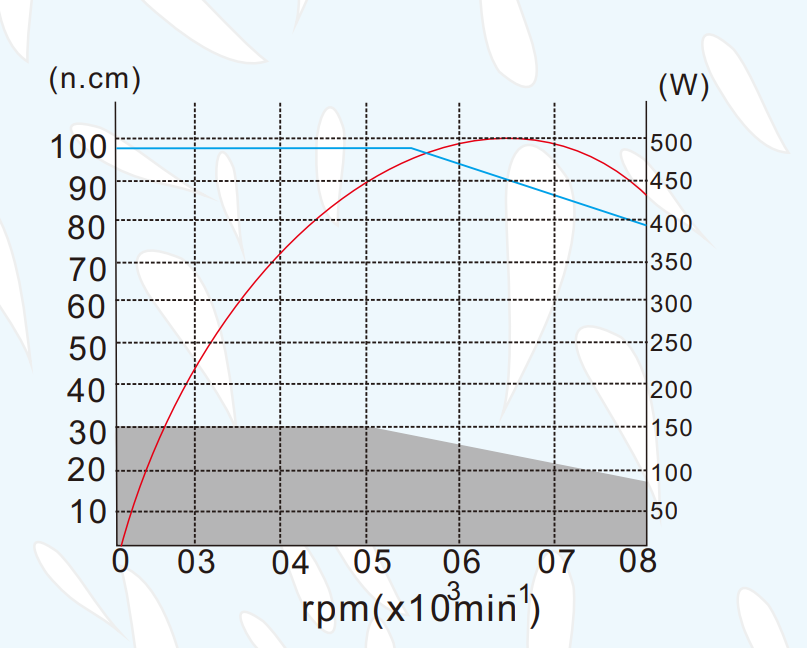

Torque output characteristics

Application

MSIY-6208 high torque spindle, due to its strong force, can hold large tool shank diameter and can be used for drilling, milling, polishing, deburring and other processing of large hard materials such as steel parts
