Product parameters

Diameter: 33mm

Length: 114mm

Speed: 1000-16000rpm

Accuracy: 3 μ m

Power: 250W

Weight: 0.5KG

Torque: 28N. cm

Collet type: ER11

Clamping range: 1.0-6.0mm

Protection level: IP64

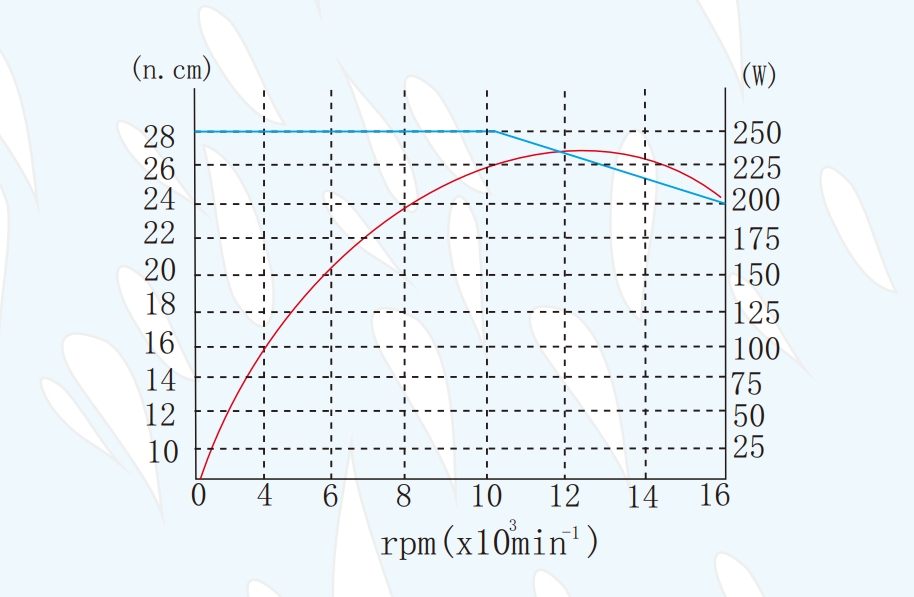

Torque output characteristics

Product Application

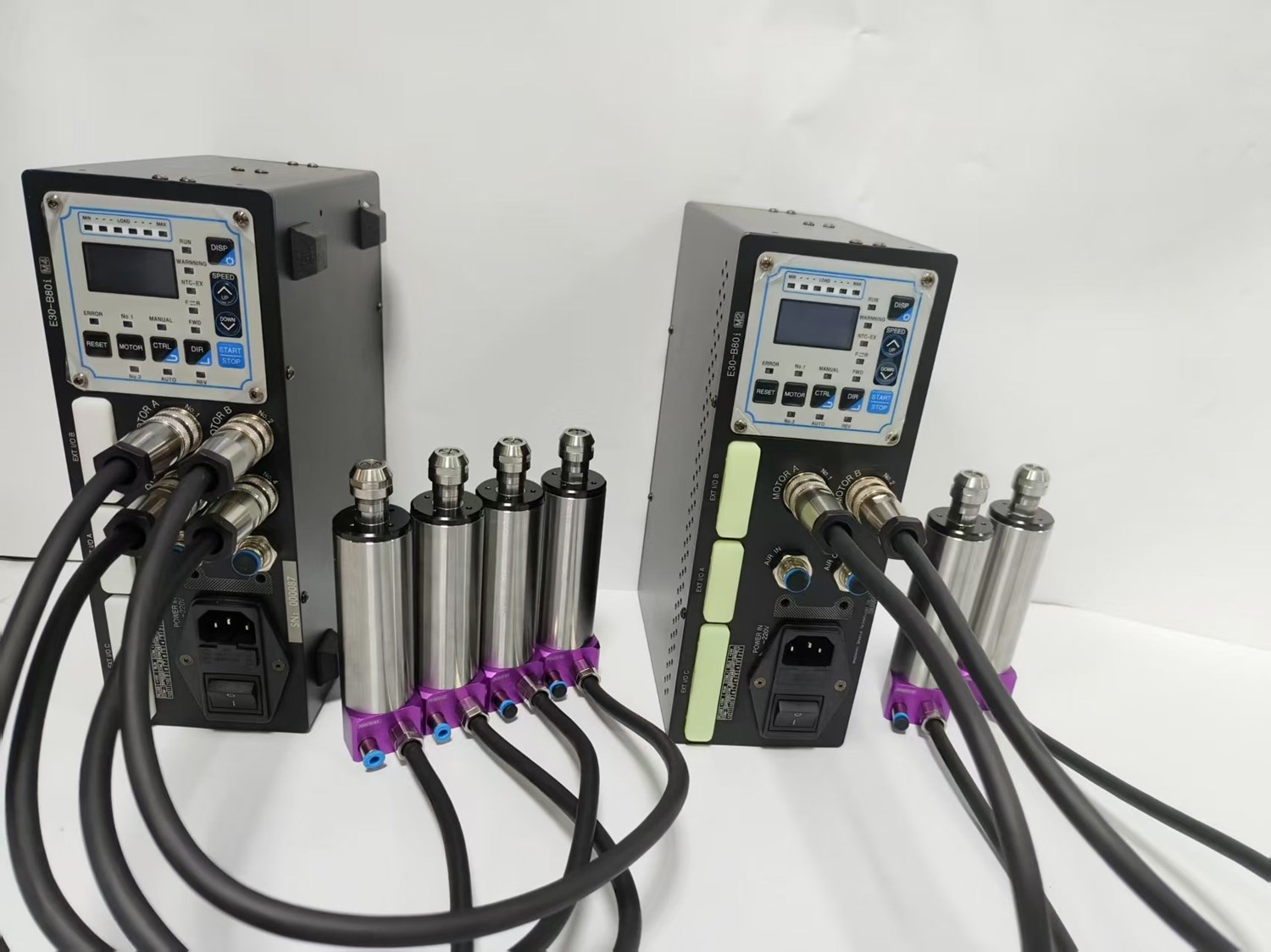

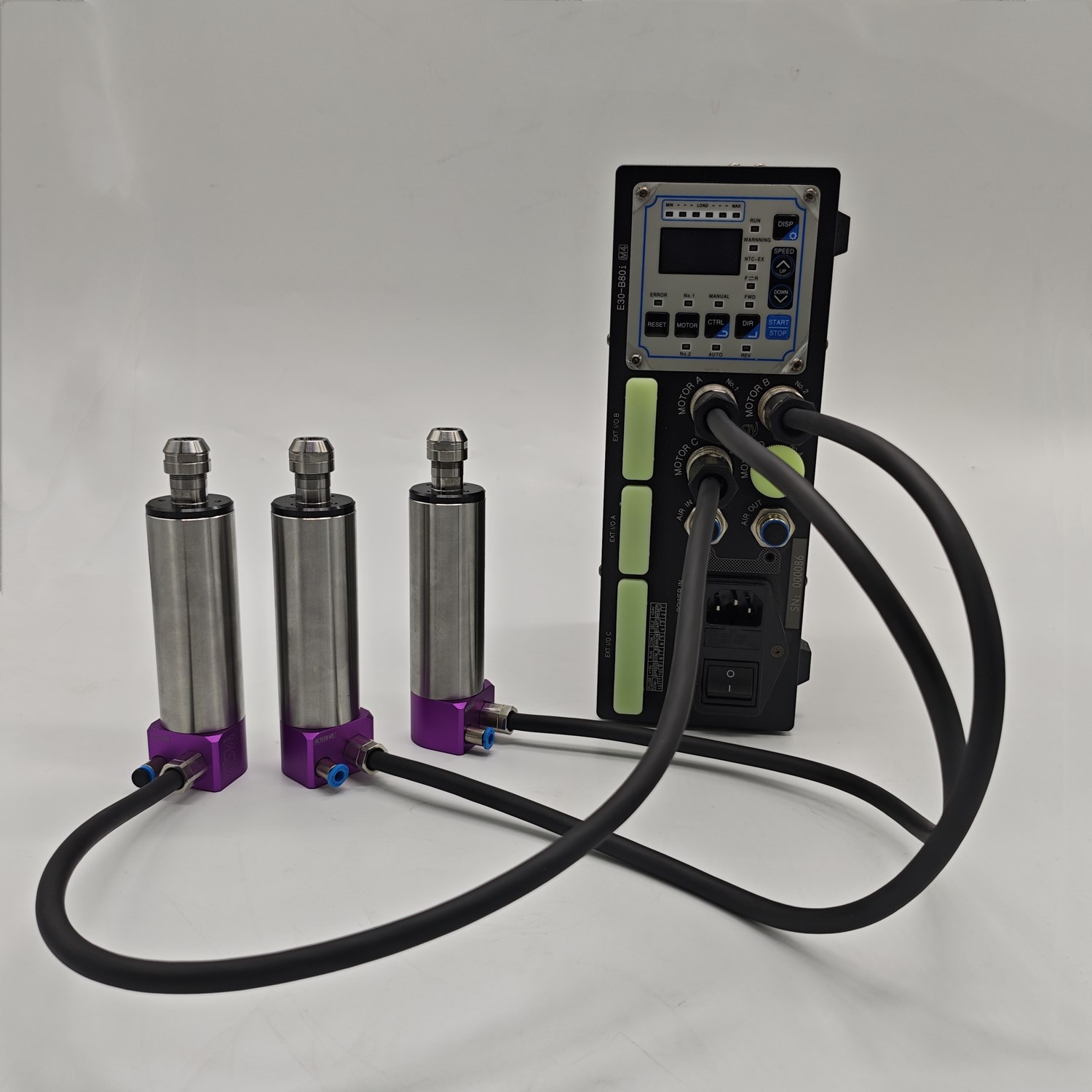

The MSIY-3316 electric spindle has a small volume and can be installed on walking machines, cutting machines, or other non-standard equipment for drilling micro holes, milling grooves, cutting, and other processing.
