Technical Parameters

      Model :msiy-20

      Floating mode :360°

      Floating range: 360°±5° Z-direction 5mm

      Floting  Pressure ：0.05-0.2mpa

      Dynamic form：Pneumatic

      Weight：0.6kg

      Speed: 8000rpm

Collet：0.5-4.0mm

Cooling mode :Air Cooling

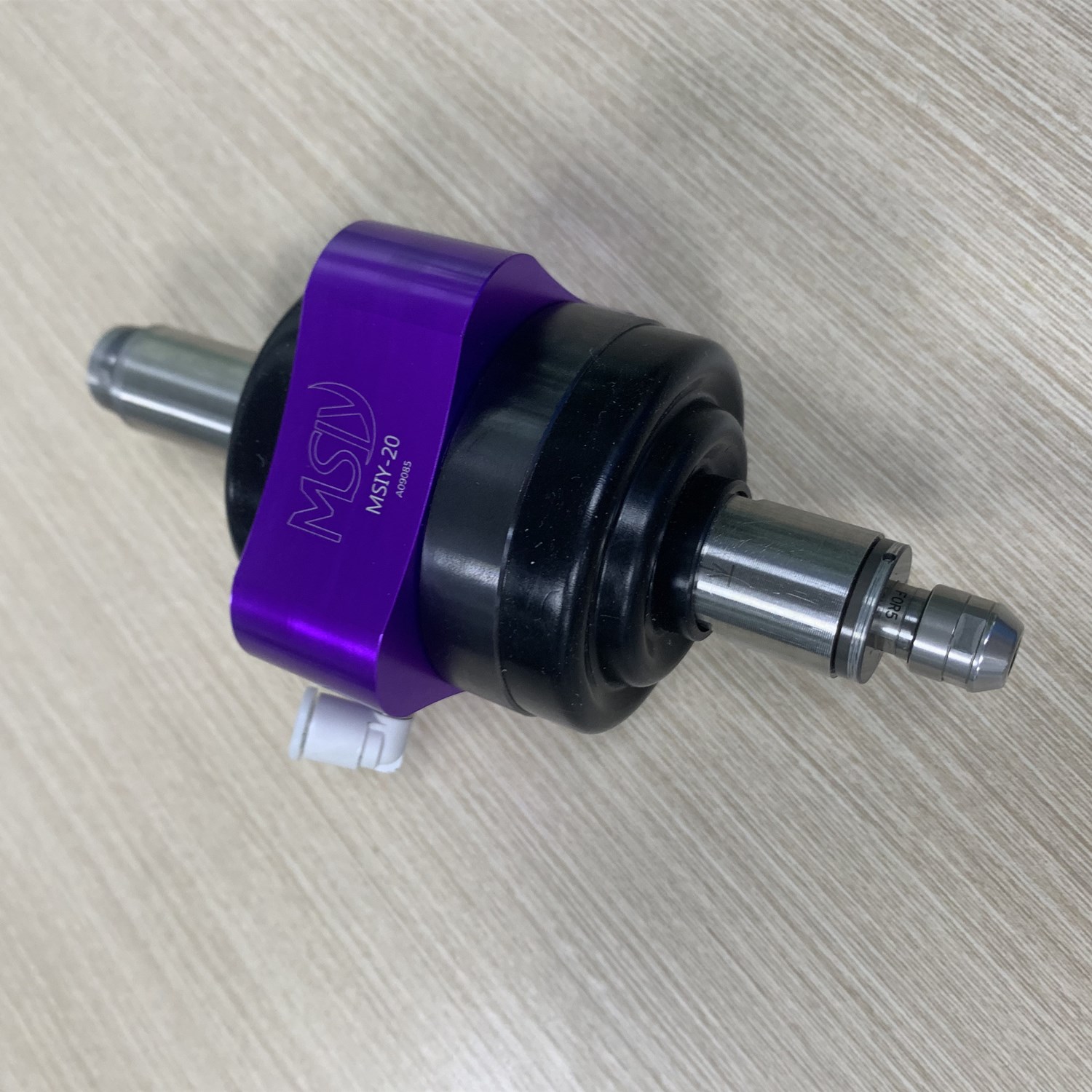

Product Real Shot

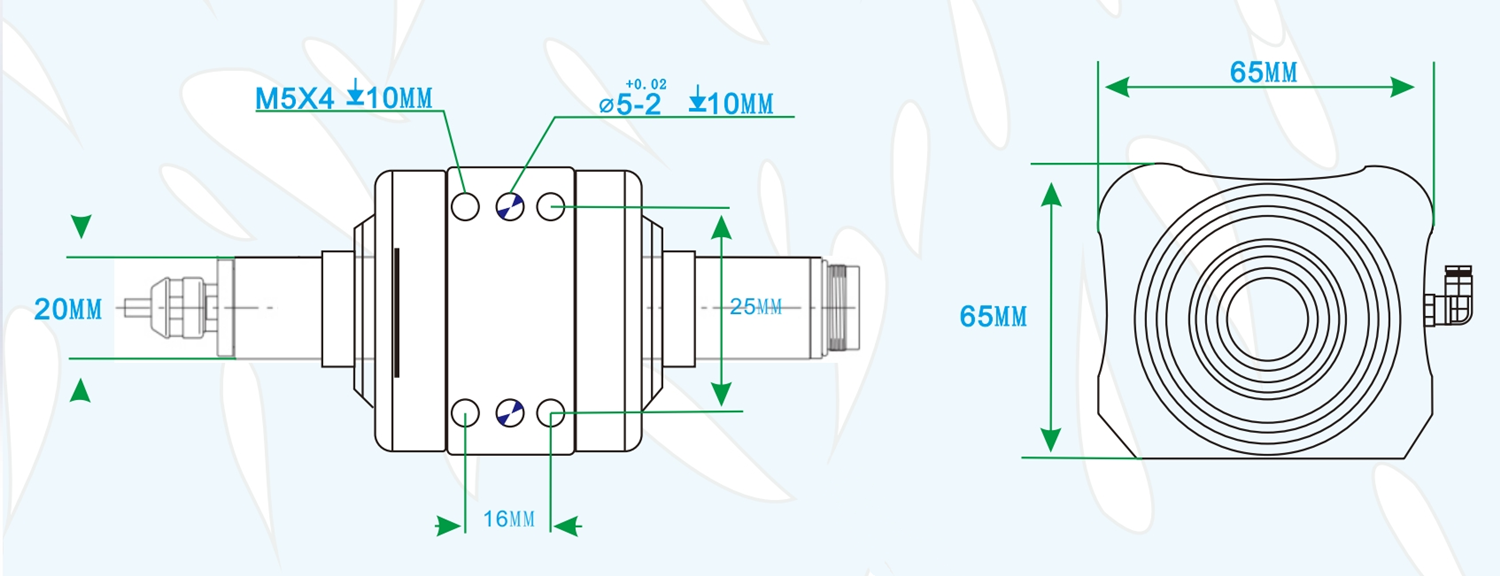

Product parameters

Pneumatic floating spindle is a floating polishing head suitable for automation equipment such as robotic arms.

It is driven by pneumatic means and can achieve high-speed and precise machining operations.

It is usually used to remove small residual burrs from materials such as sand core molding lines, zinc alloys, magnesium alloys, etc. as well as to perform fine grinding and polishing operations.
