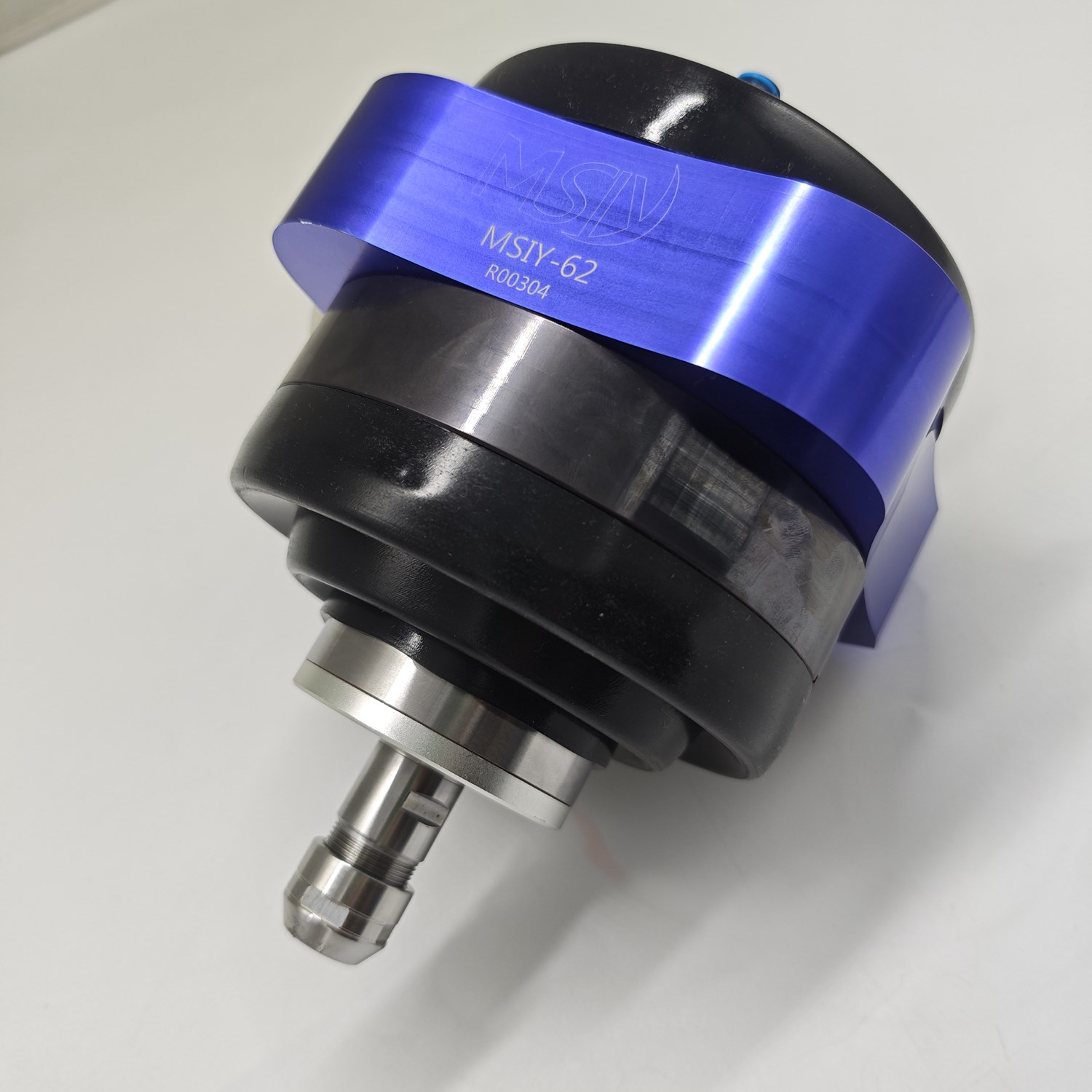

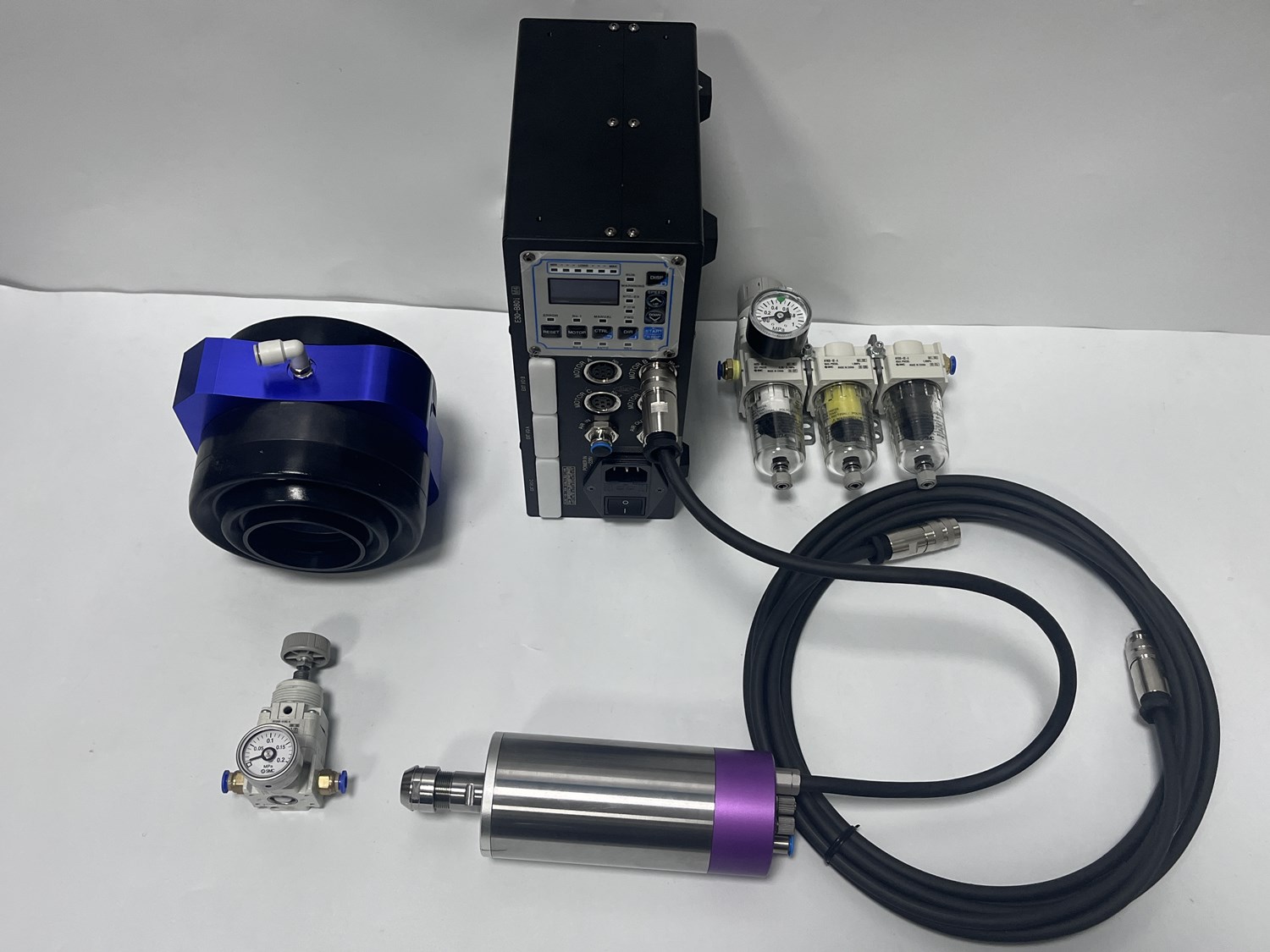

MSIY-62 Floating

With a power of 600W and torque up to 1.5N·m, this spindle operates at 6000 RPM and can accommodate tool shanks up to 13mm in diameter. It offers both air cooling and water cooling options, and features dual radial and axial floating capabilities, making it particularly suitable for grinding, polishing, and deburring hard materials such as steel, die-cast aluminum, and cast iron.

Product parameters

Model：MSIY-62

Floating method: Radial 360 °+/-5 ° Axial 5mm

Floating pressure: 0.05-0.2Mpa

Speed: 1000-6000rpm adjustable

Output power: 600W

Power supply: 100-220V

Cooling method: air cooling

Clamping tool shank diameter: 3-13mm

MSIY-62 Floating Electric Spindle Application Areas

1、Precision Deburring

Suitable for automated burr removal of automotive components (engine housings, gearboxes, etc.)

2、Complex Surface Polishing

Surface finishing of die-cast aluminum parts (new energy battery cases, motor housings)

3、Hard Material Processing

Online finishing of cast iron parts (hydraulic valve blocks, pump bodies)

Weld seam grinding of stainless steel structural parts (food machinery, chemical equipment)

4、Automated Production Line Integration

Combined with robots to achieve flexible deburring units (FMS systems)

Auxiliary machining stations for CNC machines (post-processing for turning-milling composite equipment)

Typical Application Industries:

High-end intelligent manufacturing scenarios in automotive manufacturing, aerospace, medical equipment, mold processing, and other fields.
