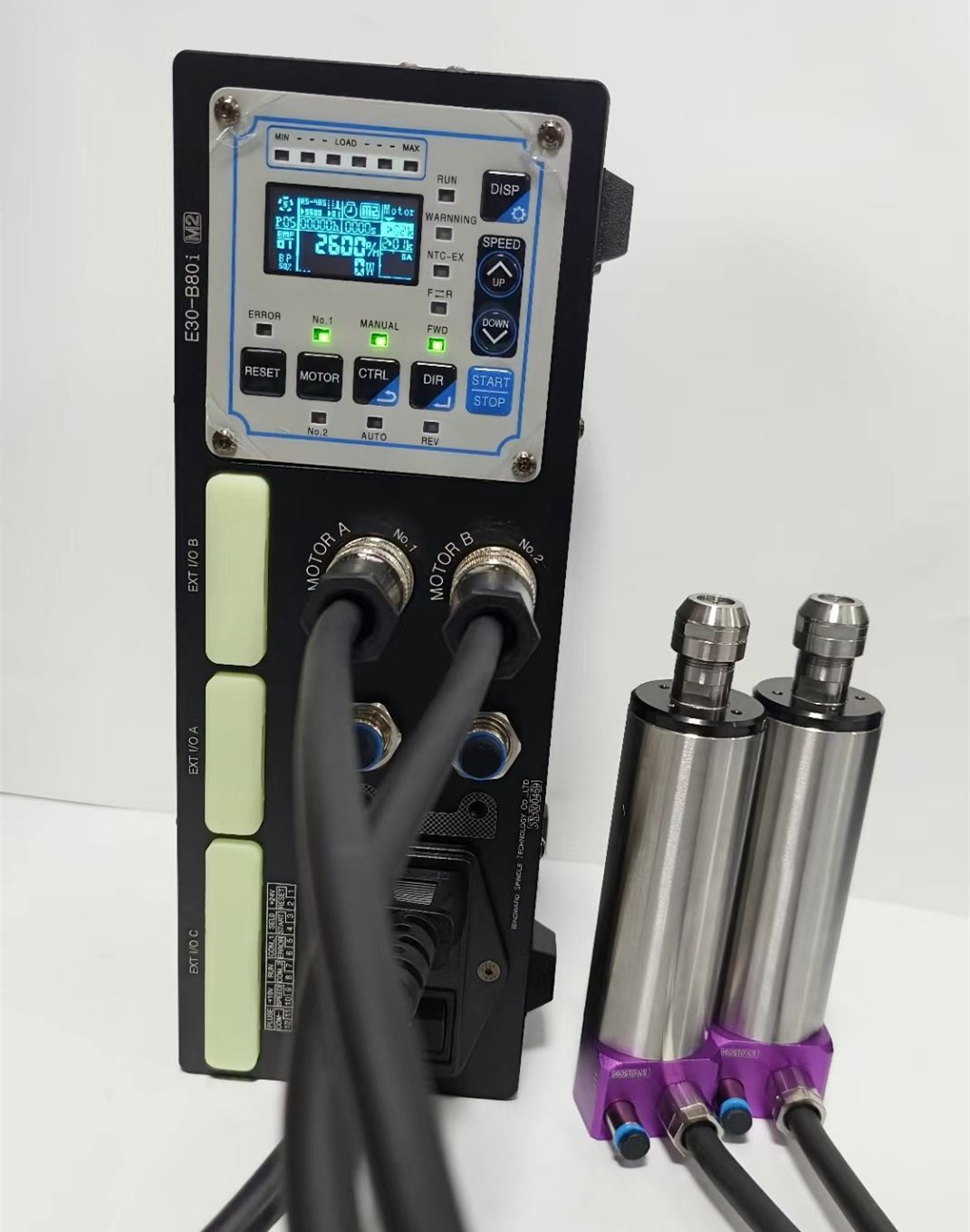

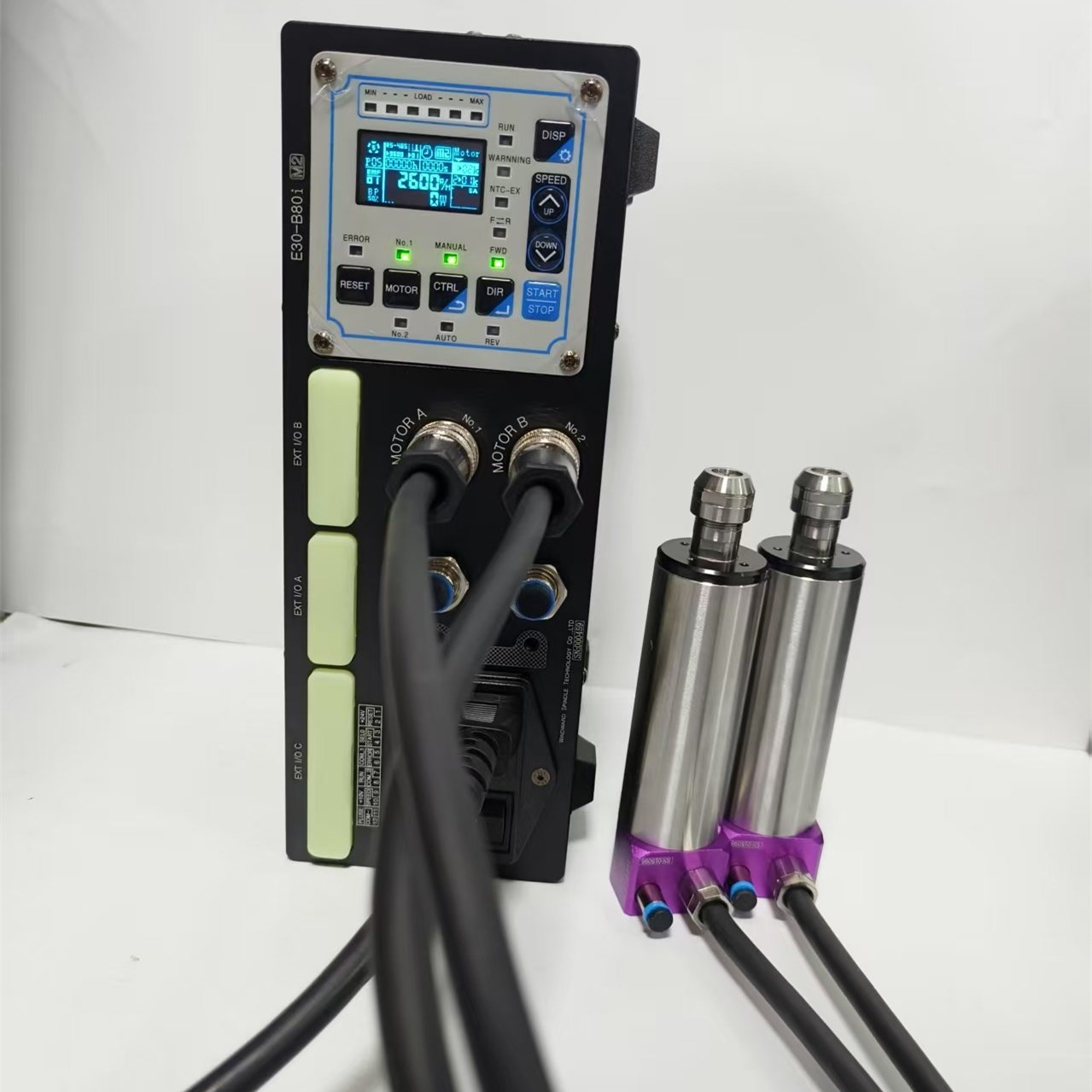

The MSIY dual-motor controller provides sequential control for two motors from a single unit, with automatic motor switching capability.

Supports remote interlock control of the controller，Equipped with  hardwired & communication。

Technical Specifications:

Rated Input Voltage: 100-220V AC, 60Hz/50Hz

Rated Output: AC33V, 3-phase, 2.4A

Power Rating: 400W

Weight: 2.55kg

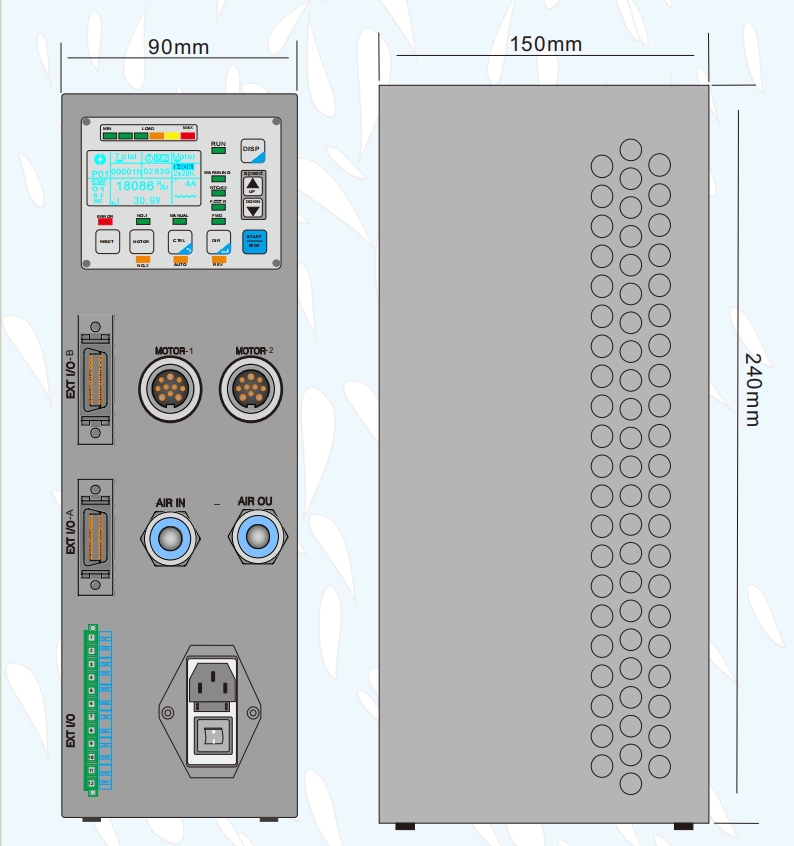

Dimensions (W×D×H): 90×150×240mm

Operating Temperature Range: 0~40°C

Model Number: E30-B80-M2

Speed Adjustment Range: 1000-80000 rpm

[A] Machining Load Visualization

Features a LOAD meter for optimal cutting condition setting.

[B] Speed Range

Wide speed range (1,000-80,000 rpm) with 3-digit digital display allowing 200 rpm increment adjustment.

Automatic motor recognition eliminates manual maximum speed setting.

[C] Modular Panel Mounting Design

Supports vertical/horizontal/rear mounting configurations for optimal space utilization and cable management.

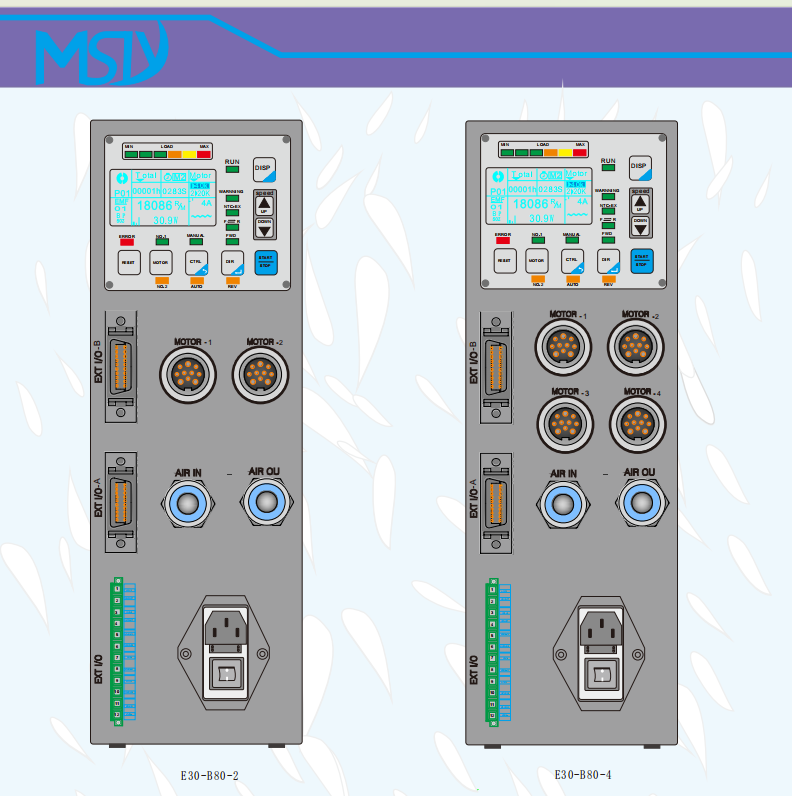

[D] Quad Motor Connection Capability

Single controller supports connection of four motors with switched operation (only one motor active at a time).

[E] External Control Functionality

Enables remote controller operation via sequence control devices.

Real-time status monitoring output available for external systems.

[Additional Core Features]

• Current Monitoring: With overload warning and installation protection

• Air Pressure Monitoring: Visualized range (0.4-0.6MPa)

• Panel Lock: 3-level password-protected access control
