What tools can be used to process burrs on aluminum cylinder heads in automobiles to reduce production costs? How to improve processing efficiency? The shape of the aluminum cylinder head for automobiles is complex, and it is necessary to remove burrs not only on the outer edge of the cylinder head, but also on the inner hole of the cylinder head. Multiple deburring brushes need to be replaced.

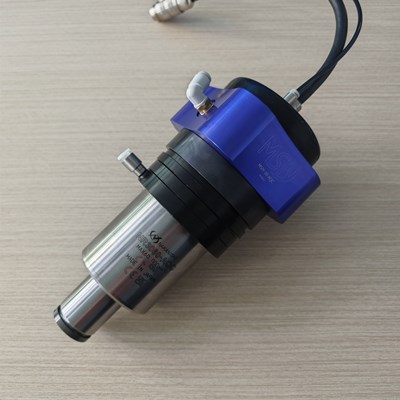

We suggest that you install MSIY-30AQC automatic tool changing floating spindle at the end of the robotic arm, which can perform contour machining on burrs on the outer edge of automotive aluminum castings. The speed can reach up to 60000 revolutions per minute, with a rotation runout accuracy of less than 1um, an output power of 350W, and can hold 6.35mm shank diameter cutting tools.

The MSIY-30AQC automatic tool changing floating spindle can achieve bi-directional floating of radial 360 ° plus or minus 5 ° and axial 5mm. It can also quickly change tools, improve tool changing efficiency, save energy, and complete multiple processes with one set of spindle. Just design a suitable tool library and select the appropriate tool holder.

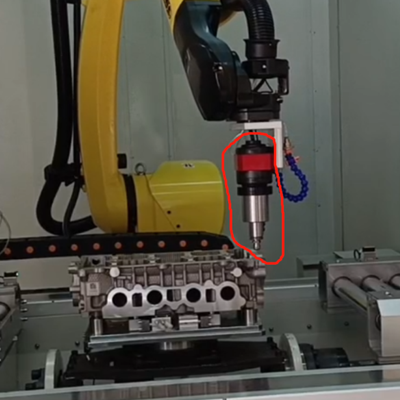

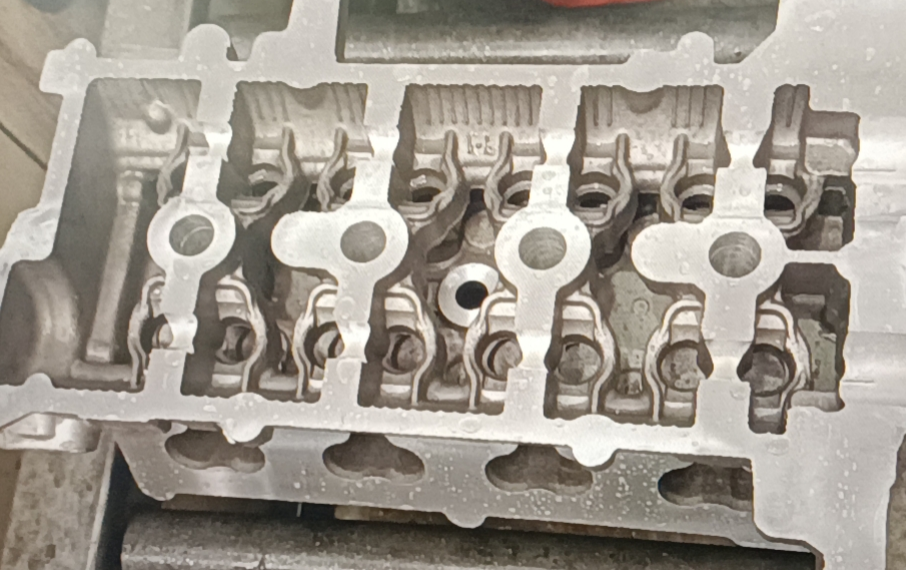

The picture shows a case study of a customer processing burrs on an aluminum cylinder head for automobiles. Currently, this solution is widely used in the field of automotive parts manufacturing. The deburring of aluminum cylinder heads for automobiles and the installation of MSIY-30AQC automatic tool changing float on the robotic arm can help enterprises truly achieve unmanned and automated deburring.
