KUKA KUKA industrial robots use MSIY floating electric spindles for deburring, with a variety of styles including bidirectional floating spindles and axial floating spindles, as well as automatic tool changing function. The specifications and models are diverse and suitable for various materials such as aluminum alloy, cast iron, steel parts, injection molded parts, etc.

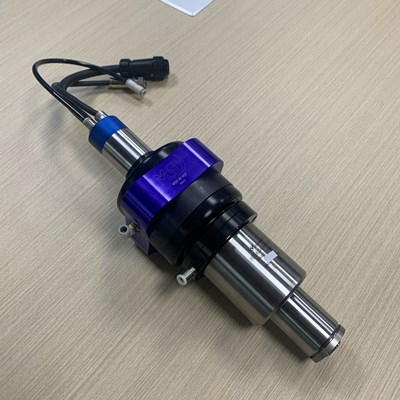

(1) 30AQC automatic tool changing floating spindle

MSIY-30AQC automatic tool changing spindle, with a power of 350W, is composed of a precision electric spindle with 60000 revolutions per minute and MSIY floating tool holder. It can be used for removing burrs with small margins below 3mm on aluminum parts, die-casting aluminum, etc.

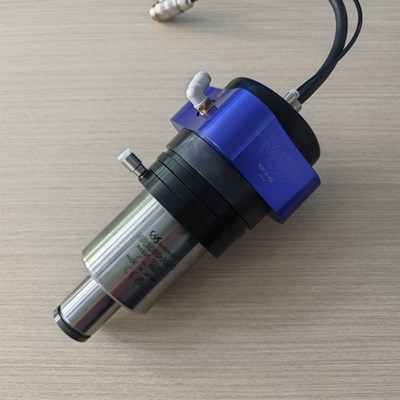

(2) 40AQC automatic tool changing floating spindle

MSIY-40AQC automatic tool changing floating spindle, power 1200W, speed 40000 rpm, torque 0.5N. m, high output force, can process hard materials such as stainless steel and cast iron, and can be used for welding seam milling, C4 chamfering and other processing.

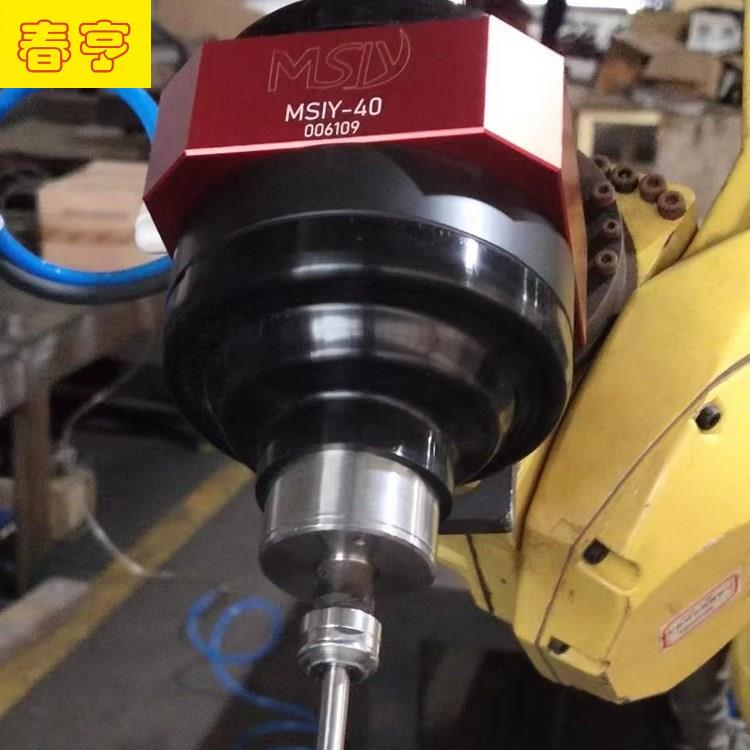

(3) MSIY-40 floating electric spindle

The MSIY-40 floating spindle is composed of an MSIY-4020 electric spindle and a floating tool holder. It has a power of 600W, a torque of 0.6N. m, a speed of up to 20000 revolutions per minute, a rotation runout accuracy of less than 3um, and can hold up to 7mm tool shank diameter. It can be used to remove burrs on aluminum parts and other materials.

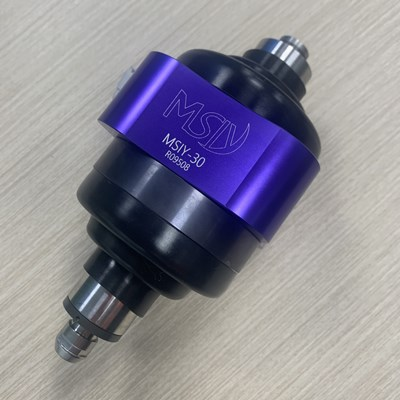

(4) MSIY-30 floating electric spindle

MSIY-30 floating electric spindle, with a power of 350W, a speed of up to 60000 revolutions per minute, and a rotation runout accuracy of less than 1 μ m. It can be used for mold removal lines of injection molded parts, plastics, etc., as well as rubber sole polishing. This product is mainly characterized by high speed, high precision, and good smoothness during processing.

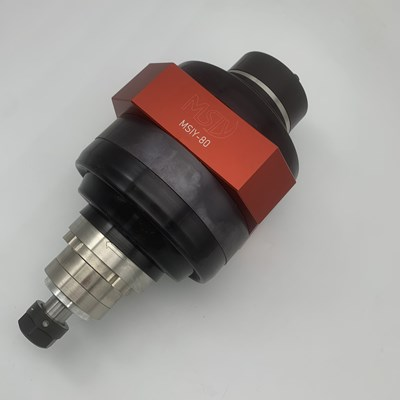

(5) MSIY-80 floating electric spindle

MSIY-80 floating electric spindle is a high torque electric spindle with a power of 2.2KW and a torque of up to 1.5N. m. It is suitable for removing burrs with large margins, such as cast iron welds and steel parts with convex platforms.
