It is indeed recommended to install MSIY-40 floating electric spindle at the end of the robotic arm during the process of deburring aluminum die-casting parts. The following is a detailed analysis of this suggestion:

1、 Introduction to MSIY-40 Floating Electric Spindle

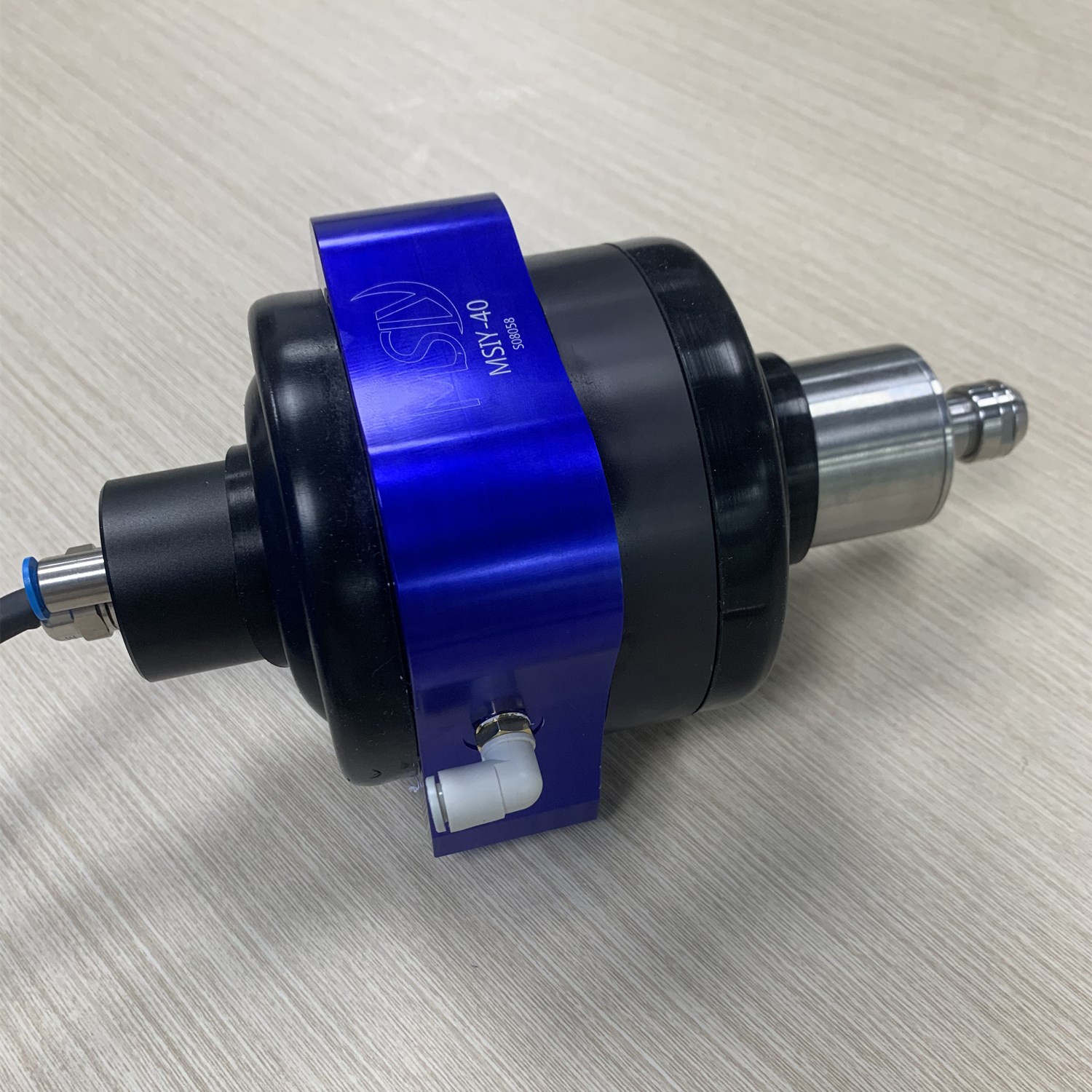

The MSIY-40 floating electric spindle is a precision tool designed specifically for automated deburring, consisting of an electric spindle with an outer diameter of 40mm and an MSIY floating tool holder. It has the following significant characteristics:

High precision: The return accuracy of MSIY-40 floating spindle can reach within 1 μ m, and the rotational runout accuracy is also within 3 μ m, ensuring the accuracy of deburring.

High speed: Its speed range is between 1000~20000rpm, and it can even be paired with other types of electric spindles to achieve higher speeds (such as 24000rpm), meeting the deburring needs of different materials.

Strong power: There are two specifications to choose from for output power: 1200W and 600W, with a torque of up to 1N · m. The output force is large and can effectively remove burrs from various materials.

Floating function: It can achieve bidirectional floating of radial 360 ° plus or minus 5 ° and axial 5mm, automatically absorb product variables, adaptively process, effectively protect the tool, and reduce debugging difficulty.

2、 Application of MSIY-40 floating electric spindle in deburring aluminum die-casting parts

Improve deburring efficiency: The robotic arm paired with MSIY-40 floating spindle can achieve 24-hour uninterrupted processing, significantly improving deburring efficiency.

Reduce labor costs: Automated deburring reduces manual intervention and lowers labor costs.

Improving product quality: The high-precision floating spindle ensures the accuracy of deburring, thereby improving the overall quality of the product.

Protecting tools: The floating function effectively reduces the risk of tool wear and damage, and extends the service life of tools.

3、 Applicable scenarios of MSIY-40 floating electric spindle

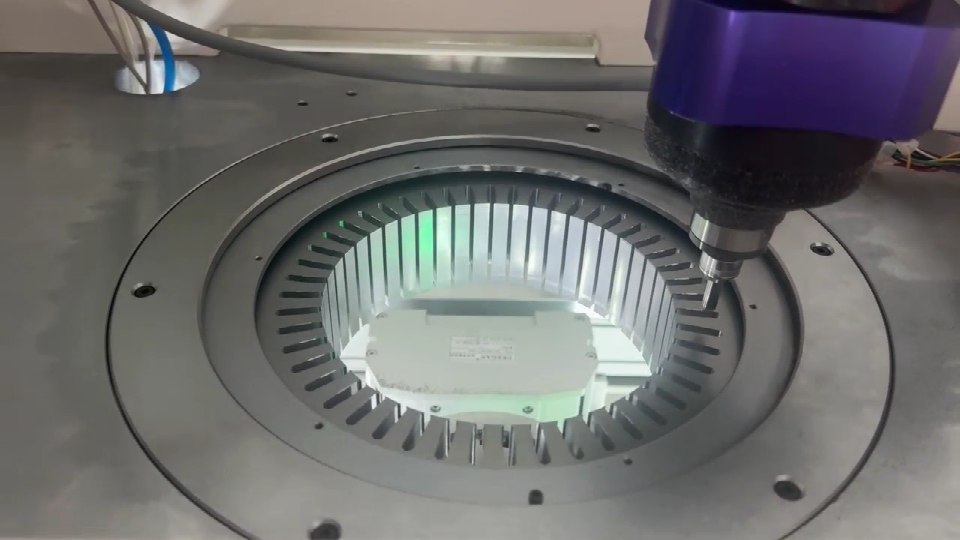

The MSIY-40 floating electric spindle is widely used in the processing of new energy vehicle components, die casting aluminum parting lines, and deburring of aluminum castings. For curved workpieces or workpieces with uneven burr margins, their floating function can ensure the uniformity and efficiency of deburring.

In summary, installing MSIY-40 floating electric spindle is an efficient and practical choice in the process of deburring aluminum die-casting parts. It not only improves the efficiency and accuracy of deburring, but also reduces labor costs and the risk of tool wear, providing strong support for the automation production of enterprises.
