Msiy-3316 brushless electric spindle, with an outer diameter of 33mm, adjustable speed of 1000-12000 revolutions per minute, output power of 200W, torque of 28N. cm, can process stainless steel and other materials. It can be used for drilling, milling, chamfering, and cutting, and can be equipped with a core machine/cutting machine.

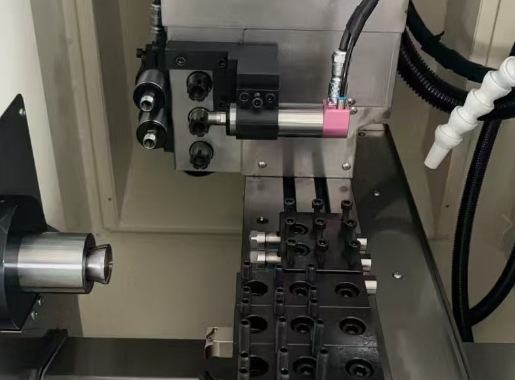

The picture shows an application case of installing MSIY-3316 on a cutting machine, which can be used for end face machining or side machining. It only needs to design a suitable fixture to install it. Although this model has an outer diameter of 33mm, it is an integrated spindle and also a miniature electric spindle. It is air-cooled and will not generate heat during 24-hour processing.

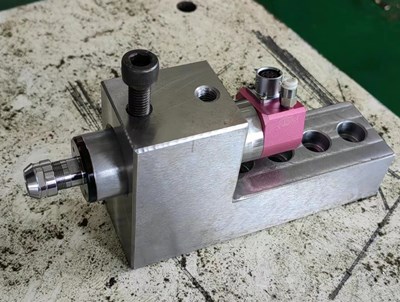

The picture shows the application of MSIY-3316 electric spindle with fixture that can be installed on the cutting machine. It can be used for drilling, milling, chamfering, etc., which is very good and improves the machining efficiency and product quality of the machine tool. The spindle is sold as a complete set with a controller, power cord, and air filter.
